In a previous post I discussed the deleterious effects of electromigration and corrosion on ceramic intermediate frequency filters, when DC potentials are applied to their pins, especially the output pin. I have collected some more data that may be of interest to those following the subject. Take a look at the photos, click on them to see an enlarged version.
Life on the edge. The first photo (25X magnification) shows the corroded edges of a filter element (the shunt output element, which due to its small thickness gives the most trouble). Observe the damage to the plating at the corner and along the upper edge, also the metal / oxide deposits that have short-circuited the element, rendering the filter inoperative. Measuring with an ohm-meter, the resistance was about 30 ohms between the plated surfaces (where it should have been a very large value, in the tens of megohms or more). However, after cleaning the element's edges in the way I have described, the filter (amazingly) returned to normal! I have repaired numerous such filters this way, and, after the addition of DC blocking capacitors in the circuit, they seem to stay healthy and happy.
A rough corner. The corner of the element in the previous photo (now in 200X magnification). Electromigration and corrosion have admittedly done a great job of stripping away the metal plating and short-circuiting the element. Check out the dendritic growths at the edge of the remaining plating. The small magnification factor doesn't do them justice. Anyone with a spare electron scanning microscope? I could accept a hand-me-down, you know, I am not that snubbish...
Filter-pox. The effects of moisture inside the filter, on the other elements. Although rather spooky-looking, the elements actually checked out all right. The leftmost thick element is the one at the input. Owing to its thickness, the input element is a lot more tolerant of the DC bias abuse. In fact, I have yet to find a troublesome input element, the trouble is always at the thin (~0.35mm) output element (seen to be missing at the far right). The elements between the input and output elements of the filter don't "see" the DC bias, so they don't suffer the dire consequenses. They get their spots, nevertheless. Moral: It doesn't pay being in the middle of any mess.

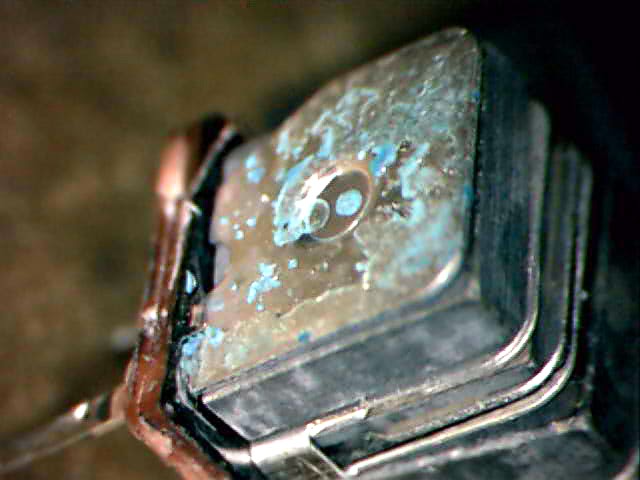

An inside job. The spring plate compressing the elements in the filter case is oxidised, too. Yes, those shiny sparkles are indeed tiny droplets of water. Some of the filters I've examined contained a surprising quantity of water. The damage was roughly proportional to the quantity of water, which suggests that the manufacturing could be improved, so as to prevent water from entering the filter's case. The problem is, we're talking about filters that cost a couple of euros retail, and it's always true you get what you pay for. I have yet to see a good crystal filter deteriorate due to moisture ingress, they're truly "hermetically sealed".
A very green face. The end plate at the input side, also oxidised. Although certainly a disturbing view, the oxidation there doesn't do much harm to the functionality of the filter (well, up to a point, I guess!)
It's aliiiive!! To test a little theory of mine, I experimented by applying about 60V DC through a 33KΩ resistor to the input and output pins of a new TOKO ceramic filter. The high voltage was intended to speed things up (things = the deterioration of the filter). This went on for two months, after which the output element was short-circuited (as expected), but the thicker input element was mostly unaffected. So, in conclusion, one may take a calculated risk and add a DC blocking capacitor only at the output pin of the ceramic filters of this type, as the input seems a lot more forgiving to abuse (and most transceivers apply only about 8V to the filter). The output pin is the one closer and opposite to the arrangement of the three grounding pins (in the TOKO brand filters I have found in Kenwood transceivers). Check the manufacturer's data sheets to find out about the other brands and types.
Radio amateurs (and every sensitive person) should establish a movement for the rights of those wonderful, innocent, so unjustly suffering components, the ceramic filters. Don't just sit there! You could write to your manufacturer of ham radio transceivers and ask for the continuing torment of those poor beasts to end at last, or something like that!...
***ADDENDUM: For those who want to learn more about the phenomenon that I propose that causes DC-biased filter failure, please take a look here: http://www.ami.ac.uk/courses/topics/0158_emgr/index.html
There you can admire two great photos of the results of electromigration across tracks and solder resist on printed circuit boards, plus lots of interesting relevant information. Clearly, humidity and voltage gradients at small distances are a bad combination!!
